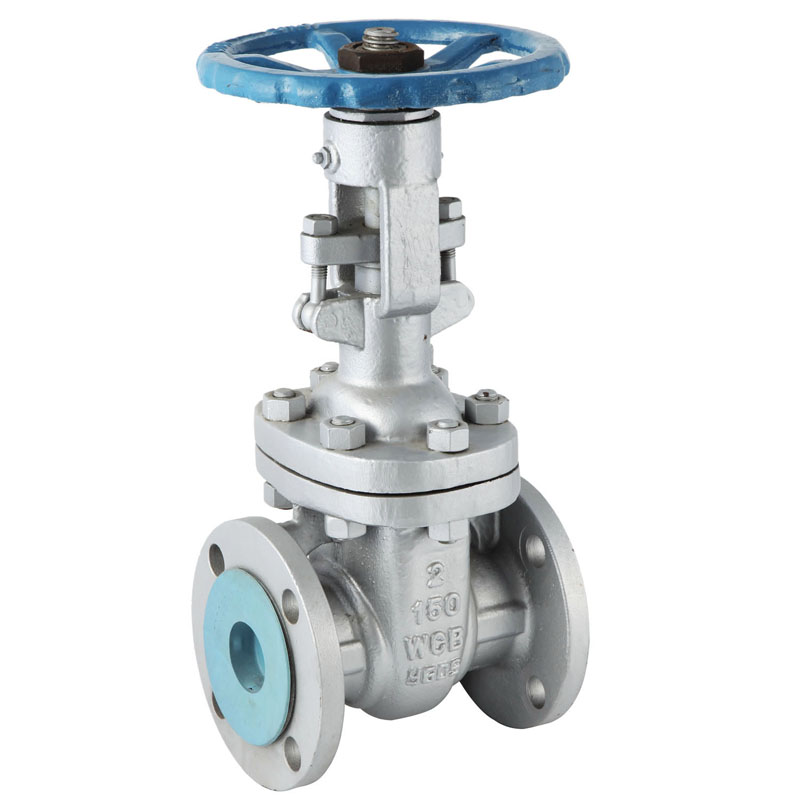

Valvola a saracinesca serie ANSI 150

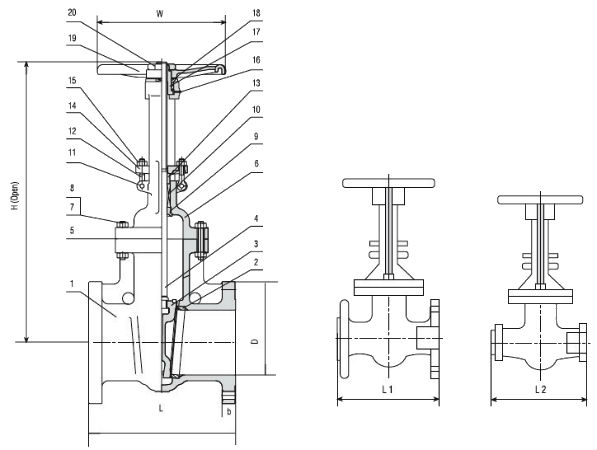

Dimensioni

Mis. L
RF		 L1
RFj		 L2
bw		 D B H
Aperta		 W Wt
IN MM IN MM IN MM IN MM IN MM IN MM MM Kgs
2 7.00 178 7.52 191 8.50 216 6.00 152.4 0.62 16 16.10 409 200 18
2½ 7.50 190 8.00 203 9.50 241 7.00 177.8 0.69 18 17.4 442 200 28
3 8.00 203 8.50 216 11.1 283 7.50 190.5 0.75 19 20.00 508 250 34
4 9.00 229 9.50 241 12.00 305 9.00 228.6 0.95 24 23.2 590 250 52
5 10.0 254 10.5 267 15.0 381 10.0 254.0 0.94 24 27.9 710 250 71
6 10.5 267 11.0 279 15.8 403 11.0 279.4 1.00 25 24.8 630 300 88
8 11.5 292 12.0 305 16.5 419 13.5 342.9 1.12 28 37.8 960 350 144
10 13.0 330 13.5 343 18.0 457 16.0 406.4 1.19 30 45.6 1158 400 197
12 14.0 356 14.5 368 19.8 502 19.0 482.6 1.25 32 54.3 1378 450 298
14 15.0 381 15.5 394 22.5 572 21.0 533.4 1.38 35 60.75 1543 500 406
16 16.0 406 16.5 419 24.0 610 23.5 596.9 1.44 37 68.4 1738 600 524
18 17.0 432 17.5 445 26.0 660 25.0 635.0 1.56 40 77.1 1959 600 720
20 18.0 457 18.5 470 28.0 711 27.5 698.5 1.69 43 87.2 2214 680 1117
24 20.0 508 20.5 521 32.0 813 32.0 812.8 1.88 48 102.3 2599 760 1466
26* 22.0 559 22.5 572 34.0 863 34.3 871.2 2.69 68 121.5 3086 GO 1699
28* 24.0 610 24.5 622 36.0 914 36.5 927.1 2.81 71 131.0 3327 GO 1931
30* 24.0 610 24.5 622 36.0 914 38.7 982.9 2.94 75 142.0 3606 GO 2380
32* 26.0 660 26.5 673 38.0 965 41.8 1062 3.18 81 146.0 3708 GO 2490
36* 28.0 711 28.5 724 40.0 1016 46.0 1168 3.56 90 154.5 3924 GO 3600
42* 32.0 813 32.5 826 45.0 1143 53.0 1346 3.81 97 179.0 4546 GO 4710
48* 42.0 1066 42.5 1079 54.0 1371 59.5 1511 4.25 108 204.0 5181 GO 6500
* RIDUTTORE A VOLANTINO

Materiali

N° NOME SPECIFICHE ASTM
A216 A352 A217 A351
WCB LCC WC6 C5 CF8M
1 CORPO A216-WCB A352-LCC A217-WC6 A217-C5 A351-CF8M
2 SEDE A105,LF2, 316 OR 304
TRATTAMENTO TENUTA SEDE 13CR, HF(STELLITE), 316, 304, Monel
3 CUNEO A216-WCB A352-LCC A217-WC6 A217-C5 A351-CF8M
TRATTAMENTO TENUTA CUNEO 13CR, HF(STELLITE), 316, 304, Monel
4 STELO 13CR, 316 OR 304, 17-4PH Monel
5 GUARNIZIONE SOFT IRON, SPIRAL WOUND
6 CAPPELLO A216-WCB A352-LCC A217-WC6 A217-C5 A351-CF8M
7 DADO A194-2H A194-4 A194-2H A194-4 A194-8
8 TIRANTE A193-B7 A320-L7 A193-B7 A193-B16 A193-B8
9 BOCCOLA CAPELLO 13Cr, 316 OR 304
10 ???? Braided graphite & Die Formed Graphite Ring
11 PERNO Carbon Steel
12 TIRANTE RIBALTABILE A193-B7 A320-L7 A193- B7     A193-B8
13 BOCCOLA PREMISTOPPA 13Cr, 316 OR 304
14 FLANGETTA  PREMISTOPPA  A216-WCB A352-LCC A217-WC6 A217-C5 A351-CF8M
15 DADO A194-2H A194-4 A194-2H A194-8
16  INGRASSATORE  Carbon Steel
17 MADREVITE ASTM A439 GR D2C
18 GHIERA FERMA MADREVITE Carbon Steel
19 VOLANTINO Malleable Iron
20 DADO FERMA VOLANTINO Carbon Steel
